| Price | RM199.00 RM269.00 |
| Product SKU | DK-14HDD-MC |
| Brand | 1st Player |
| Size (L x W x H) | 55 cm x 30 cm x 55 cm |
| Availability | In Stock |
| Shipping Fee |
Malaysia
Starting from RM17.00
|
| Quantity |
|

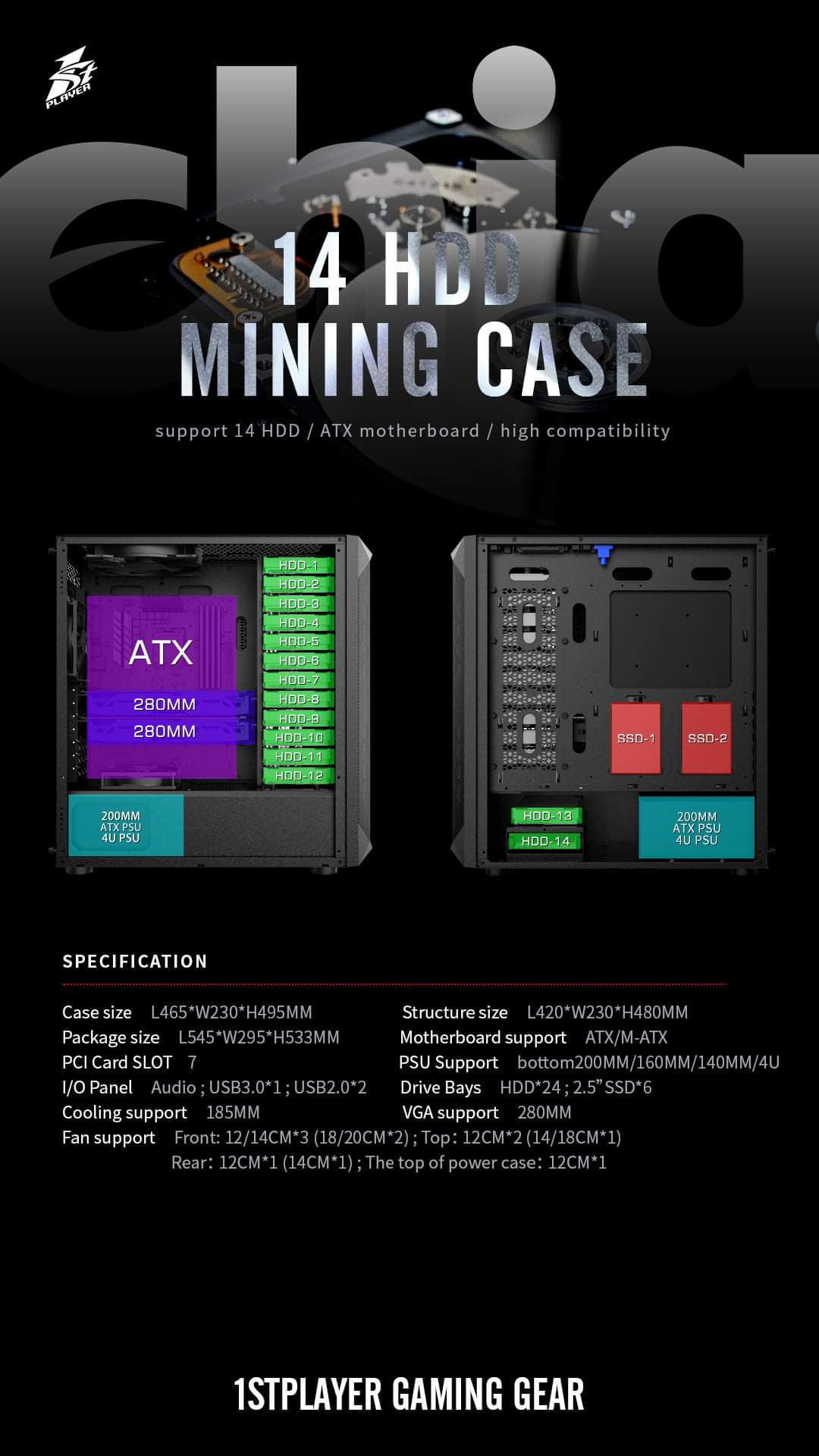

1ST PLAYER DK-14HDD CASING
CASE FORM FACTOR: UP TO ATX
FANS INCLUDED: NOT AVAILABLE
LED CONTROL VIA: NOT AVAILABLE
MAX FANS SUPPORTED: UP TO 8 FANS
INPUT / OUTPUT: USB3.0 X1 / USB2.0 X2 / AUDIO JACK / POWER & RESET
3.5" / 2.5" / COMBO BAY: 14X / 2X / -
RADIATOR SUPPORT: TOP: 120mm / 240mm , FRONT: -, REAR: 120MM
PSU FORM FACTOR: ATX UP TO 200mm (PSU NOT INCLUDED)
VGA / CPU CLEARANCE: 280mm / 185mm
DUSK FILTER: TOP ONLY
MATERIAL FRONT / SIDE: MESH METAL / METAL WITH MESH
COLORS AVAILABLE: BLACK ONLY
- Kindly PM/ Inbox us before place order. We need check stock.
Thank you.
Dear Value Customer, Please do a Video Record :
1. The Packaging Condition Of The Parcel On Arrival
2. The Process Of Unboxing The Parcel & Item
► FOR THE DAMAGES/FAULTY CLAIM PURPOSES ◄
► Any claim without video proof will not be entertained ◄
♦ --------------- Thank You For Your Purchase --------------- ♦
Kepada Pelanggan Yang Dihormati, Sila Merakam Video :
1. Keadaan Bungkusan Bila Terima Barang
2. Semasa Membuka Bungkusan Bila Terima Barang
► BAGI TUJUAN KETIDAKSEMPURNAAN / TUNTUTAN KEROSAKAN ◄
► Sebarang Tuntutan Tanpa Bukit Rakaman Video Tidak Akan Dilayan ◄
♦ ------------ Terima kasih atas pembelian anda ------------ ♦
尊敬的客户，请您录制以下视频作为包裹/产品损害/过失索赔的证据 ：
1. 包裹到货时的包装情况
2. 包裹和产品的开箱过程
► 用于损坏/故障索赔目的 ◄
► 任何没有视频证明的索赔将不予受理 ◄
♦ ---------------------------- 感谢您的购买 ---------------------------- ♦
Manufacturer 1STPLAYER
Model DK 14HDD (DK-14HDD-MC)
Type of equipment Body Mitower
Board Format ATX
Key Features Concealed cable routing, Quick access to cooler base plate
Nutrition
Power Supply ATX 12V
The presence of a power supply Sold Separately
Placement of the PSU in the case horizontal, bottom
Power supply power without PSU
Connectors and regulators
Port locations On the top panel
USB connectors on the chassis 1 USB 3.0 connected to internal MP connectors, 2 USB connected to internal MP connectors
Housing panel connectors 2 x miniJack with connection to internal MP connectors (HD-Audio)
Buttons power, reset
Indicators HDD, power
Case design and finish
Colors used in decoration Black
with a window on the side wall
Material Steel thickness 0.8mm
Hull design
Number of slots for expansion cards 7 slots
Disk system
2.5 inch internal bays 2
3.5 inch internal bays fourteen
Internal HDD cage Fixed
HDD mount On screws
Cooling
Space for a fan on the front wall 3 fans: 140 x 140 or 120 x 120 mm
Space for a fan on the back wall 1 fan: 140 x 140 or 120 x 120 mm
Place for a fan on the top panel 3 fans: 140 x 140 or 120 x 120mm (2x 140mm or 3x 120mm)
Compatibility
Maximum cooler height 165 mm
Supported expansion boards Only full-size (Full Height)
Logistics
Dimensions (width x height x depth) 230 x 495 x 465 mm
The weight 5.54 kg
Net weight (measured in NYX) 6.3 kg
Package dimensions (measured in NYX) 54.65 x 54 x 29.78 cm
Gross weight (measured in NYX) 7.45 kg
1st Player DK-14HDD ATX Case
