| Price | RM109.00 RM188.00 |
| Product SKU | KVR16S11/8WP |
| Brand | Kingston |
| Size (L x W x H) | 10 cm x 10 cm x 5 cm |
| Availability | In Stock |
| Shipping Fee |
Malaysia
Starting from RM8.00
|
| Quantity |
|
• JEDEC standard 1.5V Power Supply
• VDDQ = 1.5V
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB : Height 1.180” (30.00mm), double sided component
- Kindly PM/ Inbox us before place order. We need check stock.
Thank you.
Dear Value Customer, Please do a Video Record :
1. The Packaging Condition Of The Parcel On Arrival
2. The Process Of Unboxing The Parcel & Item
► FOR THE DAMAGES/FAULTY CLAIM PURPOSES ◄
► Any claim without video proof will not be entertained ◄
♦ --------------- Thank You For Your Purchase --------------- ♦
Kepada Pelanggan Yang Dihormati, Sila Merakam Video :
1. Keadaan Bungkusan Bila Terima Barang
2. Semasa Membuka Bungkusan Bila Terima Barang
► BAGI TUJUAN KETIDAKSEMPURNAAN / TUNTUTAN KEROSAKAN ◄
► Sebarang Tuntutan Tanpa Bukit Rakaman Video Tidak Akan Dilayan ◄
♦ ------------ Terima kasih atas pembelian anda ------------ ♦
尊敬的客户，请您录制以下视频作为包裹/产品损害/过失索赔的证据 ：
1. 包裹到货时的包装情况
2. 包裹和产品的开箱过程
► 用于损坏/故障索赔目的 ◄
► 任何没有视频证明的索赔将不予受理 ◄
♦ ---------------------------- 感谢您的购买 ---------------------------- ♦

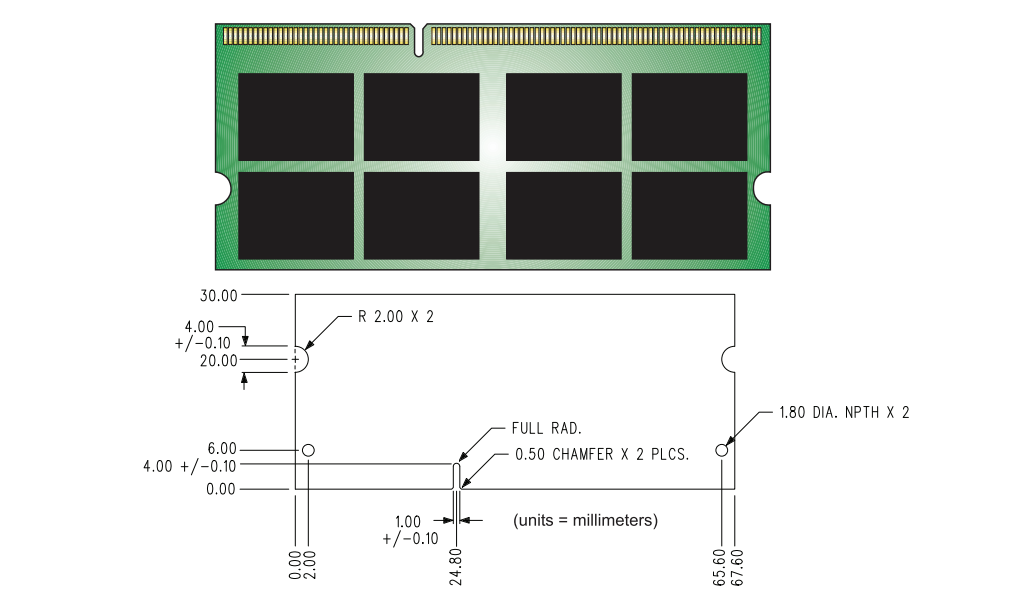

KVR16S11/8
8GB 2Rx8 1G x 64-Bit PC3-12800
CL11 204-Pin SODIMM
DESCRIPTION
This document describes ValueRAM's 1G x 64-bit (8GB) DDR3-
1600 CL11 SDRAM (Synchronous DRAM) 2Rx8, memory
module, based on sixteen 512M x 8-bit FBGA components. The
SPD is programmed to JEDEC standard latency DDR3-1600
timing of 11-11-11 at 1.5V. This 204-pin SODIMM uses gold
contact fingers.
CL(IDD) 11 cycles
Row Cycle Time (tRCmin) 48.125ns (min.)
Refresh to Active/Refresh 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin) 35ns (min.)
UL Rating 94 V - 0
Operating Temperature 0C to 85C
Storage Temperature -55C to +100C
• JEDEC standard 1.5V Power Supply
• VDDQ = 1.5V
• 800MHz fCK for 1600Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
• Asynchronous Reset
• PCB : Height 1.180” (30.00mm), double sided component
Kingston KVR16S11/8WP DDR3 8GB 1600MHz Notebook RAM
